Wall Flashing for Bitumen Corrugated Roofing

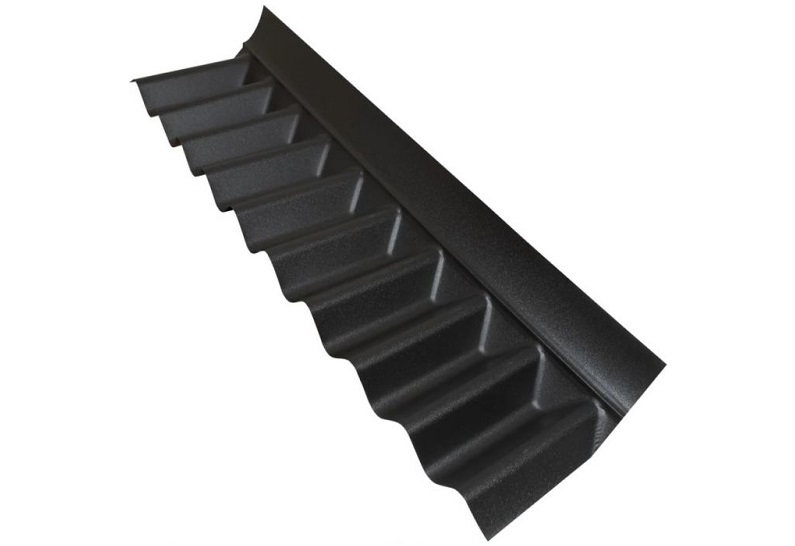

The Wall Abutment Flashing Trim is a durable and easy-to-install PVC-u profile designed to provide superior weatherproofing where corrugated bitumen roofing meets a vertical wall. This essential accessory ensures a secure, watertight seal, preventing leaks and improving the longevity of your roofing system.

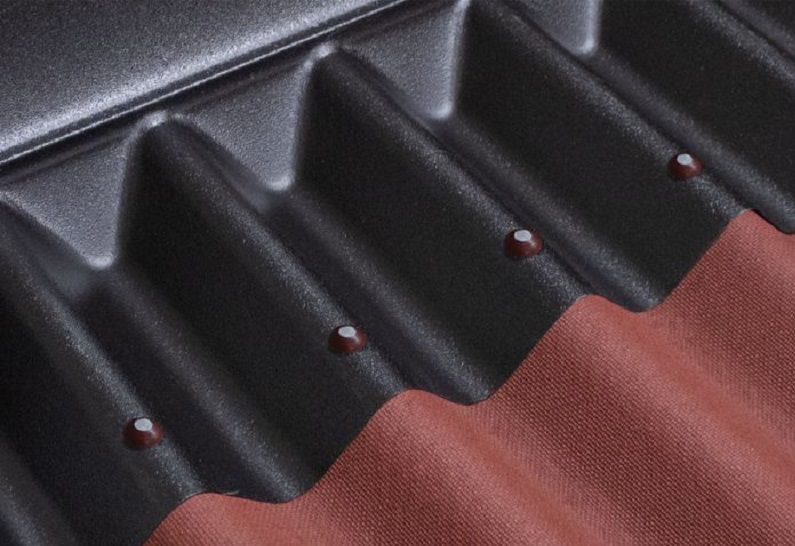

The corrugated section of the abutment neatly sits over the roofing sheets, secured using the same nail fixings as the top of the sheets. Its flat upstand fits flush against the host wall and can be over-flashed if needed for additional protection.

Key Features & Benefits

  • Perfect Fit – Specifically designed for Gutta 950mm corrugated sheets
  • Quick & Easy Installation – Simply position over the sheets and fix in place
  • Effortless Customisation – Easily cut to size using a jigsaw
  • Versatile Compatibility – Compatible with most 95mm corrugation height profiles

£23.62 Inc VAT
Request Quote

Description

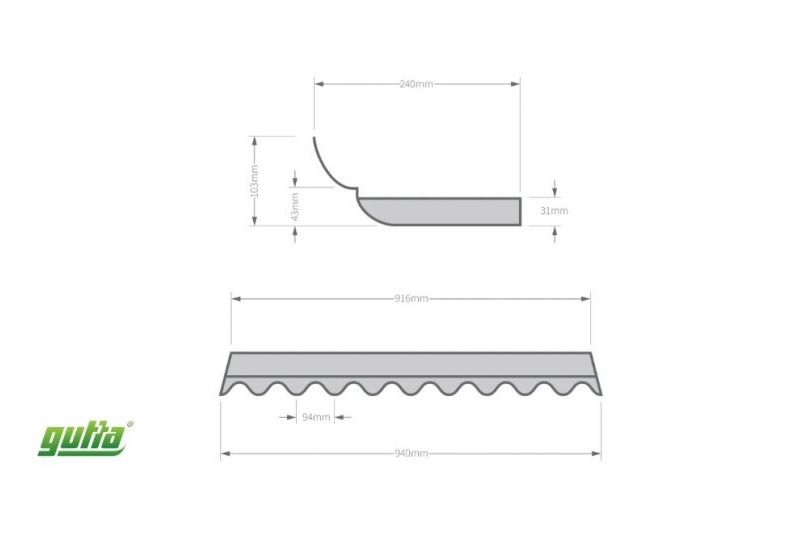

Wall Abutment Flashing Trim Specifications

  • Colour: Charcoal
  • Length: 940mm
  • Depth: 240mm
  • Height: 103mm (with upstand)
  • Compatibility: Gutta Guttapral bitumen corrugated sheets & most 95mm wave profiles

Gutta Corrugated Roofing System Specifications

  • Material: Multi-layer bitumen corrugated roof sheets with colour impregnation
  • Profile: Corrugated with 10 waves
  • Sheet Size: 950mm x 2000mm
  • Sheet Thickness: 2.3mm
  • Wave Length: 95mm
  • Wave Height: 31mm
  • Fire Resistance Class: B2 (DIN 4102)
  • Guarantee: 15 Years water permeability (when installed as per manufacturer guidelines)

Key Benefits

  • Clear and elegant appearance
  • Easy to cut
  • Easy, fast and safe installation
  • Lightweight
  • Low Cost
  • Weather Resistance

Common Applications

  • Entrance canopies
  • Patio enclosures
  • Pergolas and Gazebos
