Timber Self-Tapping EPDM Screws

Easy to fix Galvanised Steel Prevents uplift by wind Weather Resistant

Timber Self-Tapping EPDM Screws - Image 2

Timber Self-Tapping EPDM Screws - Image 3

Timber Self-Tapping EPDM Screws - Image 4

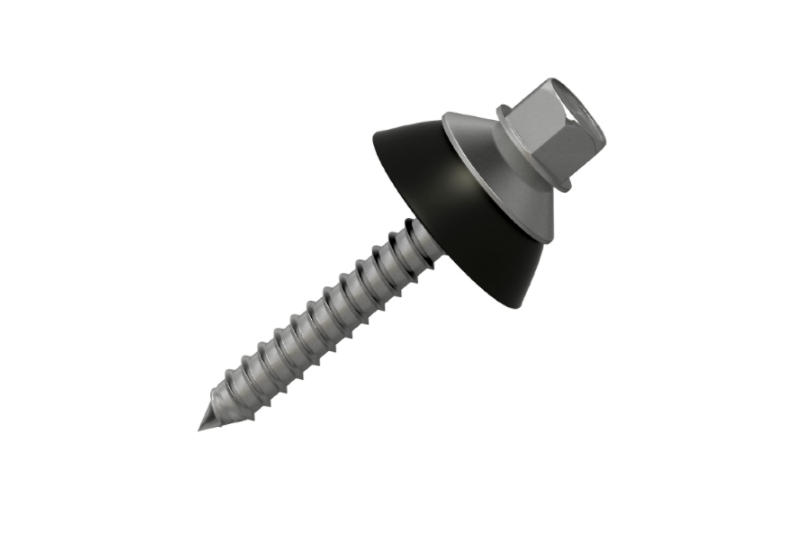

These timber self-tapping screws are designed for fixing corrugated polycarbonate roofing sheets to wooden supports. Supplied with a 25mm EPDM washer, they provide a secure fixing while allowing the roofing sheet to accommodate normal expansion and contraction.

The screws are suitable for use with a range of corrugated polycarbonate roofing products, including Suntuf™, Ez Glaze™ and Suntuf™ Beehive. They are also suitable for other compatible polycarbonate corrugated profiles where the screw size and fixing method are appropriate.

The EPDM washer helps spread the load around the fixing point and provides a weather-resistant seal, while the galvanised steel screw offers suitable corrosion resistance for outdoor roofing applications.

Please note: These screws are designed for timber supports only. If fixing corrugated sheets to steel or aluminium, a suitable self-drilling metal fixing should be used instead.

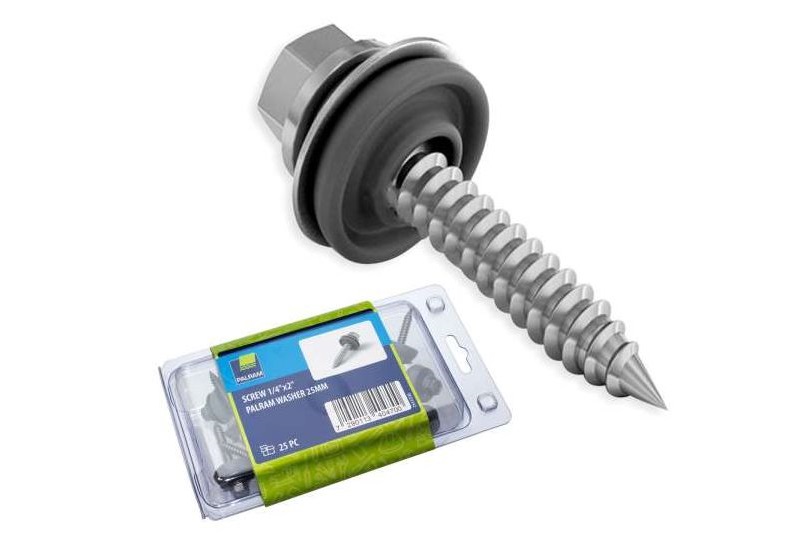

Product specification: 50mm x 6.5mm screw with 25mm EPDM washer.

Inc VAT

Quantity per pack

Request Quote

SKU: 92490-Packs

Description

Key Benefits:

For Timber Supports: Designed specifically for fixing corrugated roofing sheets to wooden purlins and supports.
25mm EPDM Washer: Helps distribute the fixing load and provides a weather-resistant seal around the fixing point.
Self-Tapping Design: The screw forms its own thread in the timber, making installation straightforward.
Galvanised Steel: Provides corrosion resistance for outdoor roofing applications.
Suitable for Corrugated Polycarbonate: Ideal for compatible products including SUNTUF™, EZ Glaze and Beehive corrugated sheets.
Allows for Thermal Movement: When installed correctly, the EPDM washer and fixing arrangement allow the sheet to accommodate normal expansion and contraction.
Neat Finish: The fixing sits securely against the sheet without requiring a separate washer to be sourced.
Available in Multiple Pack Sizes: Suitable for both smaller DIY projects and larger roofing installations

Installation Information

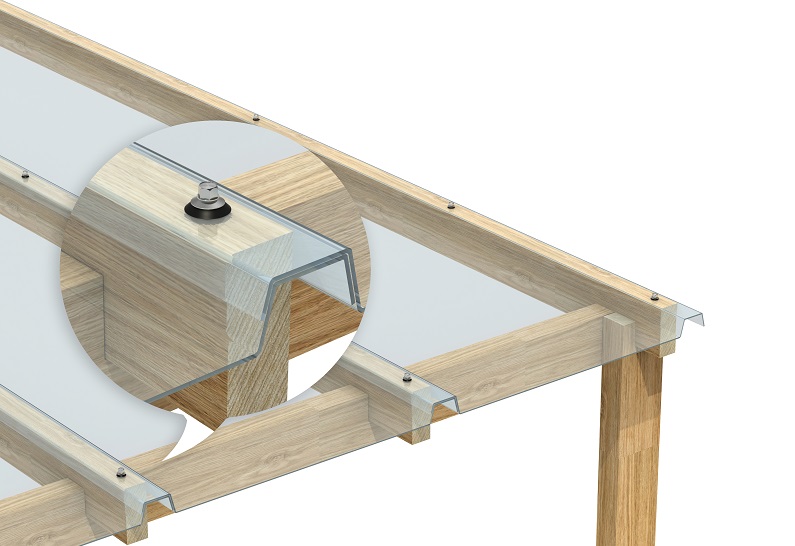

Timber supports only: These screws are intended for wooden purlins and supports. Use suitable self-drilling fixings when fixing to metal.
Pre-drill the sheet: Corrugated polycarbonate should be pre-drilled with an appropriately sized hole to allow for thermal expansion and contraction. Follow the manufacturer’s installation instructions for the specific sheet being installed.
Install square to the sheet: The screw should be inserted perpendicular to the sheet so the EPDM washer sits evenly against the surface.
Do not over-tighten: Tighten the screw sufficiently to hold the sheet securely and seat the EPDM washer, but do not crush the washer or distort the roofing sheet.

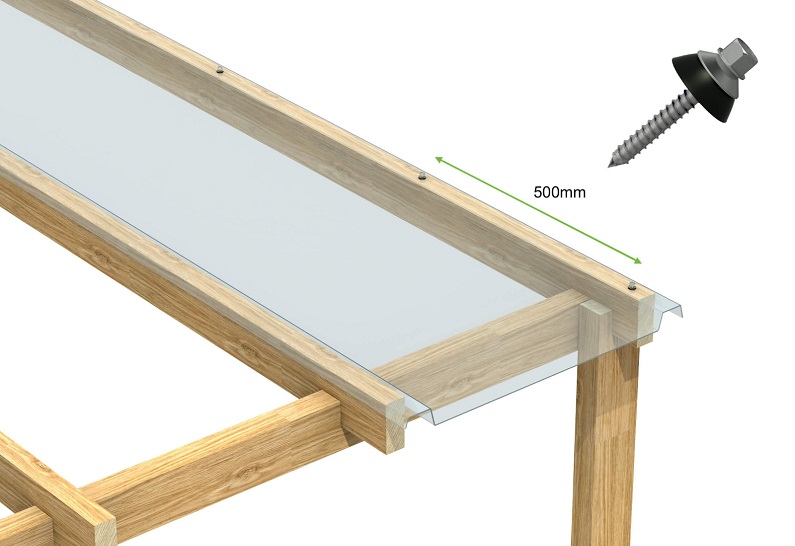

Correct fixing position: Fixing positions and spacing vary depending on the corrugated profile and supporting structure. Always follow the manufacturer’s recommendations for the roofing sheet being installed.
Check the washer: The EPDM washer should sit evenly around the fixing point and cover the hole properly.
Allow for movement: Polycarbonate expands and contracts with changes in temperature, so the fixing must not restrict this natural movement.
Do not walk directly on corrugated sheets: Use suitable crawling boards or roof ladders supported by the structure when access to the roof is required.
